2026 VAV Controller Selection Guide: Trends, Cost & Alternatives

In 2026, Variable Air Volume (VAV) systems remain the cornerstone of energy‑efficient HVAC in commercial buildings and laboratories. However, with rising maintenance costs and growing demand for open‑protocol integration, choosing the right VAV controller is no longer just about brand - it is about architecture, precision, and long‑term return on investment (ROI).

Hot Products

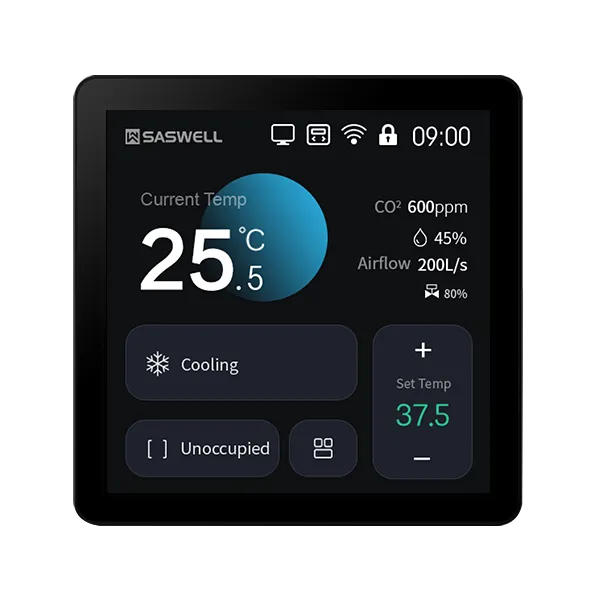

Universal VAV HMI 4-inch Color Display Dedicated OEM Interface

Premium 4-inch color VAV interface with 7-day rapid OEM UI customization.

SAS965HMI

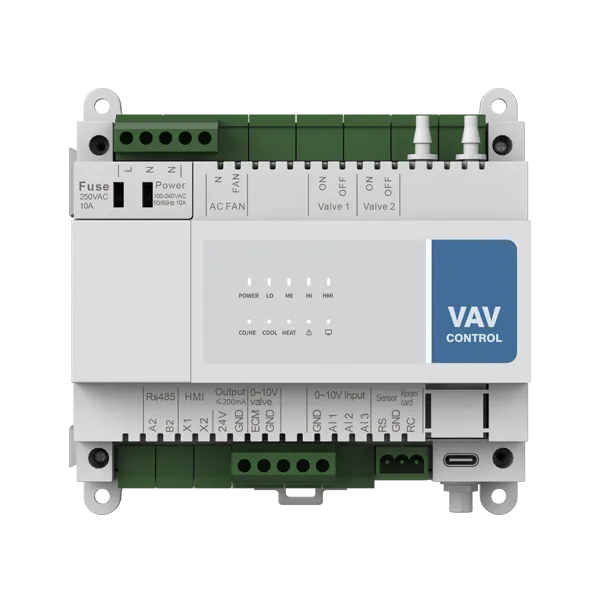

BACnet MS/TP VAV Controller with Integrated DP Sensor and 0-10V Modulating Control

Digital FCU thermostat with Modbus/WiFi for BMS/Central AC. Offers precise, programmable control and energy management.

HDC-VAV

VAV Control: The 2026 Technology Shift

The industry is moving away from proprietary lock‑in. Modern VAV controllers must deliver high‑precision airflow sensing while offering the flexibility of BACnet MS/TP or Modbus communication.

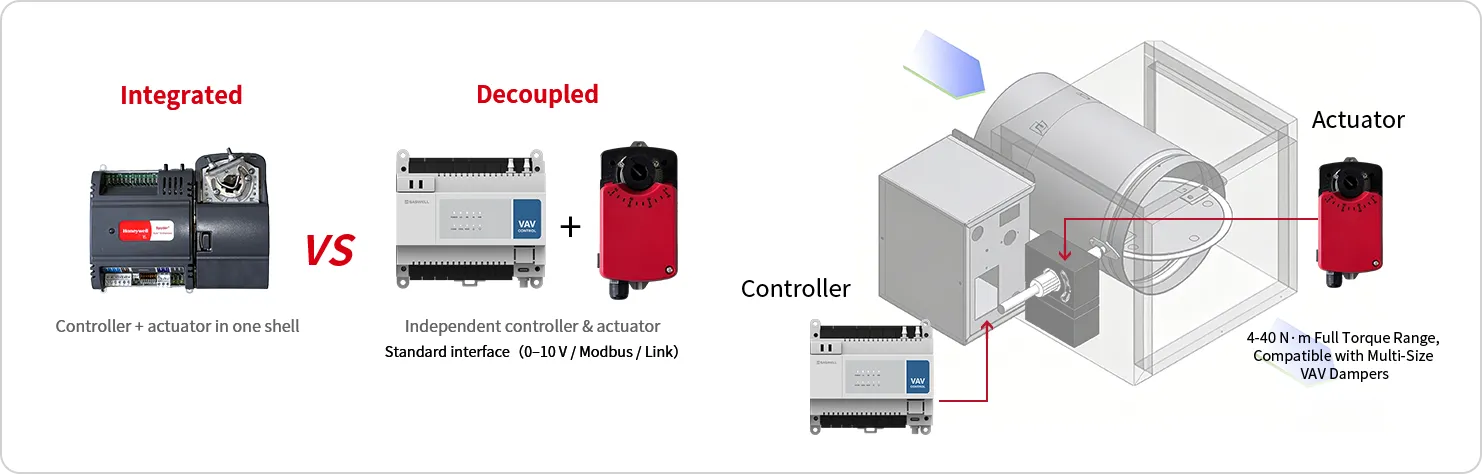

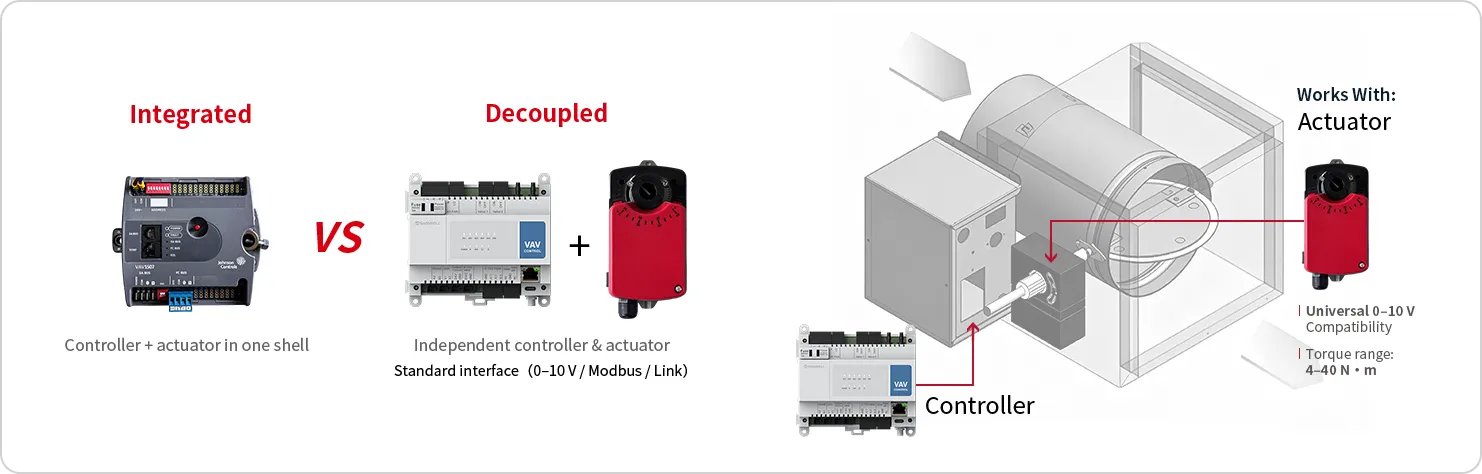

Comparison chart – integrated VAV controller vs decoupled HDC218-VAV architecture with 0-10V actuator compatibility and BACnet MS/TP integration

Architecture	Description	Pros	Cons
Integrated (Traditional)	Controller + actuator in one housing	Single‑source responsibility	High initial cost, vendor lock‑in, long downtime for repairs
Decoupled (Saswell Way)	Independent controller & actuator, compatible with 0‑10V motors	Lower cost, flexible sourcing, quick replacement	Basic electrical compatibility check required

HDC218 Core Compatibility

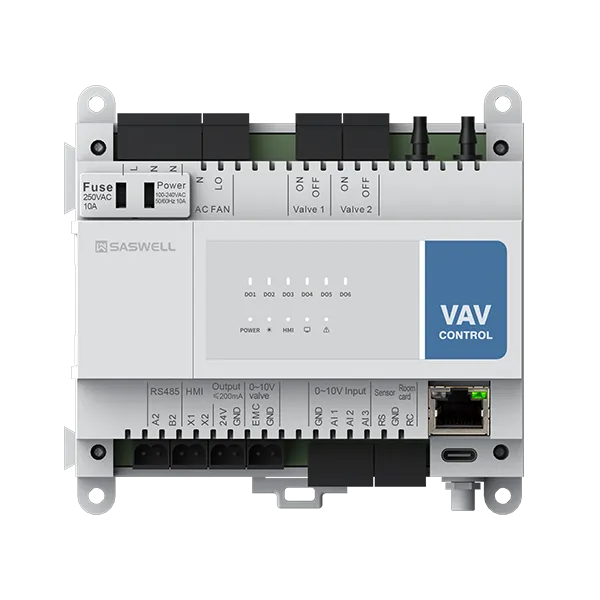

The HDC218 BACnet VAV Controller features a decoupled design and delivers pressure independent control as a truly universal VAV controller:

● Actuator Compatibility: Works with any 0‑10V analog actuator ( Honeywell, Trox, KMC, etc.).

● System Integration: Native BACnet MS/TP and Modbus RTU for plug‑and‑play connection to Tridium, Desigo, Metasys, and other major BMS platforms.

● Extended Features: Built‑in 2‑stage reheat (electric or hydronic) logic that directly drives 0‑10V water valves – no extra controller needed. See our Hydronic Reheat Optimization Guide for details.

One System, Many End Devices – Highly Universal Architecture

Our VAV control solution is built around HDC (controller + sensor) + HMI + actuator, offering exceptional universality.
Whether you need to control VAV boxes, VAV terminal units, Venturi valves, dampers, laboratory fume hoods, or workstations, the same system adapts without hardware changes.

Native BMS Integration

The controller natively supports BACnet MS/TP and Modbus RTU, enabling seamless integration with leading BMS platforms such as Tridium Niagara, JCI Metasys, Siemens Desigo, and Honeywell – no proprietary gateways required.

PLC Power Line Carrier Communication
(Non-Polar 2-Wire)

• One cable for power & data: Power and signals travel over a single non‑polar two‑wire cable, dramatically reducing wiring.

• No polarity errors: Polarity reversal is impossible, eliminating a common field‑wiring failure.

• Faster installation: Simplified wiring reduces labour costs and speeds up commissioning..

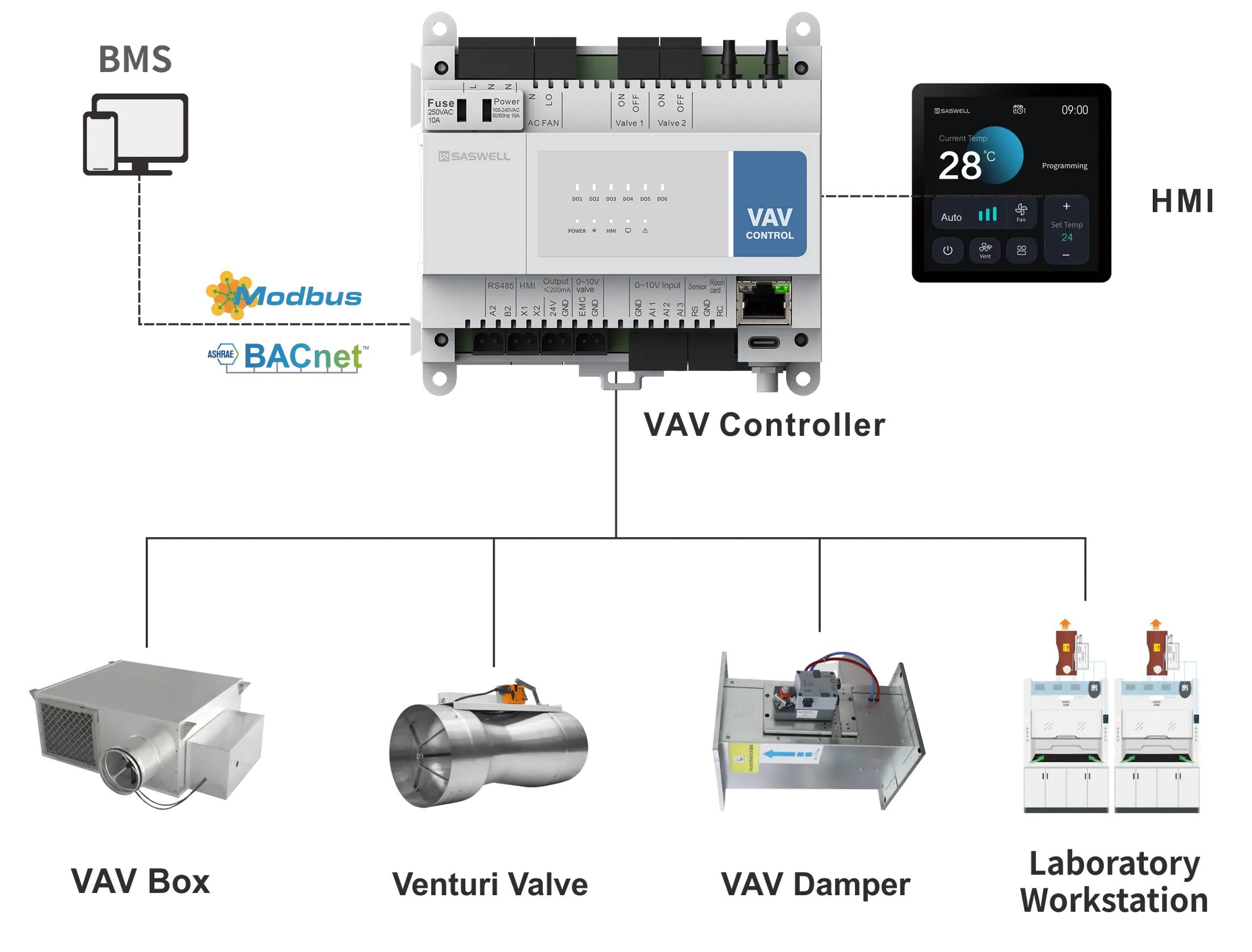

Decoupled VAV system architecture: HDC218-VAV controller, SAS965-HMI panel, 0-10V actuator, and BMS integration via BACnet MS/TP

High universality + open protocols + minimal wiring make your VAV system agile for any project, while lowering both selection complexity and long-term operational costs.

🔗 Further reading: JCI VMA Replacement Guide | Laptop-Free Commissioning Guide

Competitive Analysis:
Direct Alternatives to Tier‑1 Brands

Many engineers look for high‑performance VAV controllers that replace legacy systems without the premium price of top‑tier brands.

Feature	Saswell HDC218	Siemens GDB	JCI VMA16
Built‑in DP sensor	✓ ±0.5% accuracy	Optional	✓
BACnet MS/TP	✓ Native	✓	✓
Standalone HMI option	✓	✗	✗
Lead time	4‑6 weeks	12‑16 weeks	16‑20 weeks
10‑year maintenance cost	Low	High	High

Siemens Alternative:

More flexible HMI options than the GDB/GLB series. Read the Siemens VAV Comparison Guide →

Johnson Controls (JCI) Alternative:

Break free from Metasys dependency and gain supply chain freedom. Read the JCI VMA Replacement Guide →

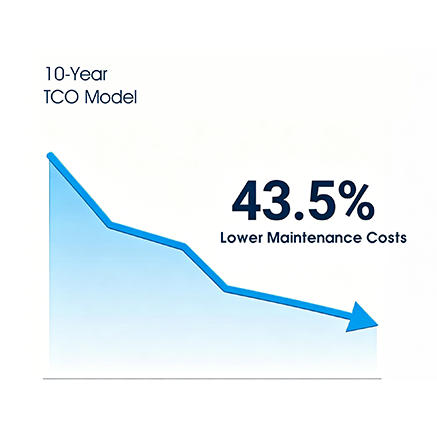

10-year TCO comparison – decoupled HDC218-VAV controller reduces maintenance cost by 43.5% vs integrated JCI VMA and Siemens GDB

VAV System Cost & ROI

Understanding VAV controller cost goes beyond hardware purchase; it includes:

Hardware

Controller + universal actuator

Commissioning cost

Difference between complex engineering software and simple HMI‑based parameter setup.

10‑Year TCO Example

By using a decoupled VAV controller, facility managers can reduce 10‑year maintenance costs by approximately 43.5%.

For more OEM cost‑saving strategies, see the VAV Box Manufacturer Cost Reduction Guide →

Optional HMI Local Smart Terminal:
Airflow Calibration & PID Tuning in One Place

Saswell offers the SAS965‑HMI Display Unit as an optional local smart terminal. When on‑site commissioning and service convenience matter, the HMI transforms traditionally PC‑/license‑dependent operations into simple panel‑based menu navigation.

Airflow Calibration

In the engineering settings menu, enter damper area, Pitot tube factor, correction factor, and max airflow limit. The system automatically calculates and locks the airflow feedback – no external tools required.

PID Tuning (Eliminate Hunting)

If damper oscillation (hunting) occurs, adjust the proportional gain (P) and integral time (I) in real time via the HMI to instantly stabilise the loop. The 0‑10V PID algorithm paired with a high‑resolution DP sensor allows field engineers to watch the airflow fluctuation curve and turn knobs until the system is perfectly smooth.

🔗 Technical deep dive: VAV System Hunting Fix Guide

SAS965-HMI panel – laptop-free airflow calibration and PID tuning for HDC218-VAV controller in 5 minutes

When equipped with the optional HMI, any on‑site electrician can independently commission and maintain the VAV system, drastically reducing reliance on specialised software and vendor support.

Vertical Industry Solutions

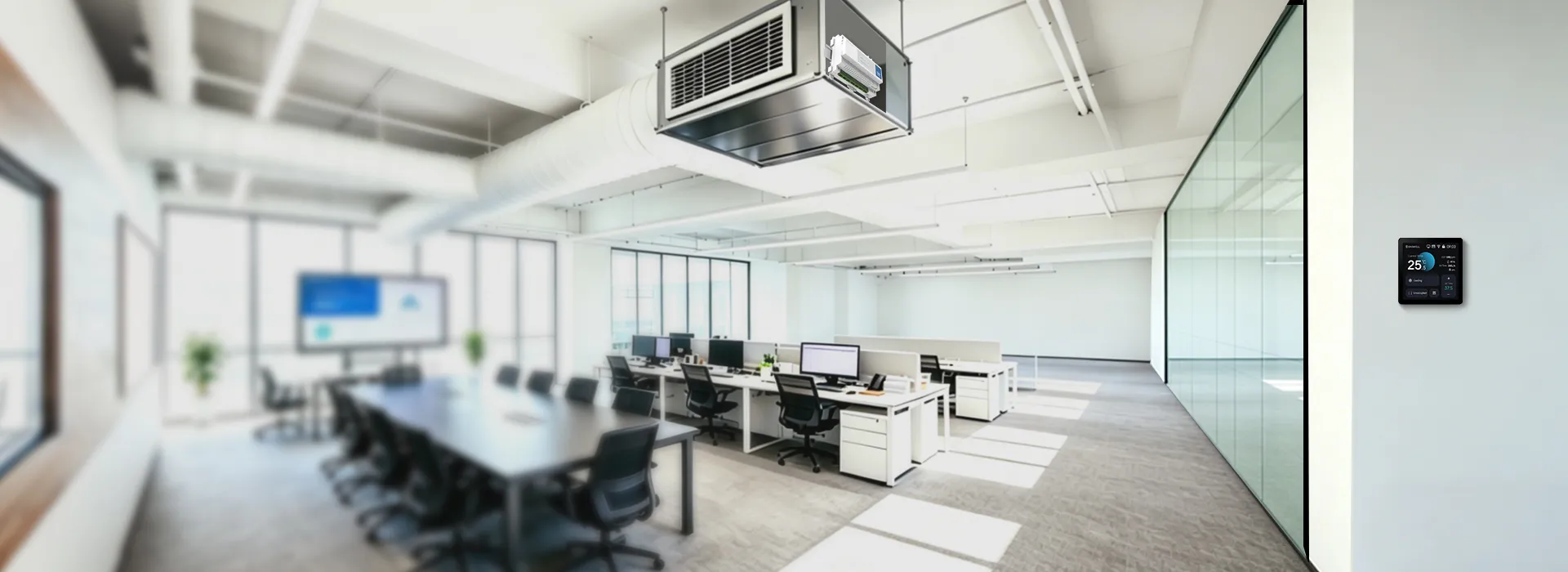

Commercial Offices:

based Demand Controlled Ventilation (DCV).

View Office Building Solution →

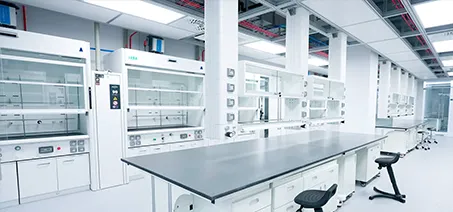

Critical Environments (Labs / Cleanrooms)

0.1 Pa pressure resolution.

View Laboratory VAV Safety Control System →
