SAS816FHL

Digital Thermostat for Electric Heating

Get a quote

Digital non‑programmable control

Large LCD display

Rotary dial temperature setting

16A high load capacity

Built‑in or remote floor sensor

Budget‑friendly for projects

Home Product Residential Thermostats Electric Heating Control Technology Platform for OEM and HVAC Brands Digital Thermostat for Electric Heating

Product Feature

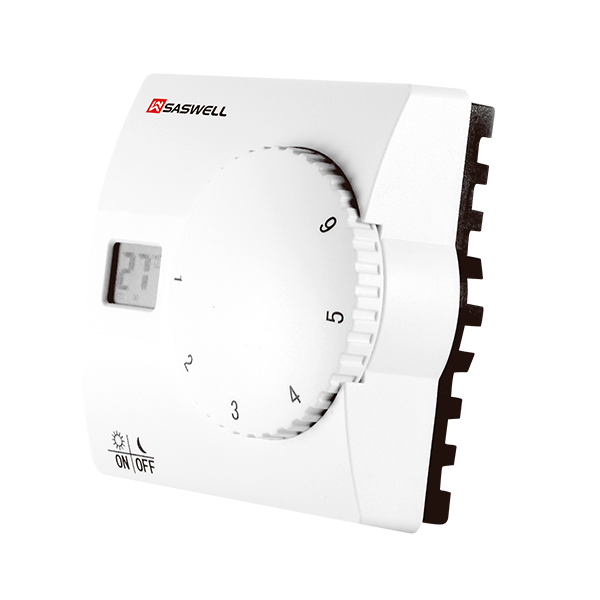

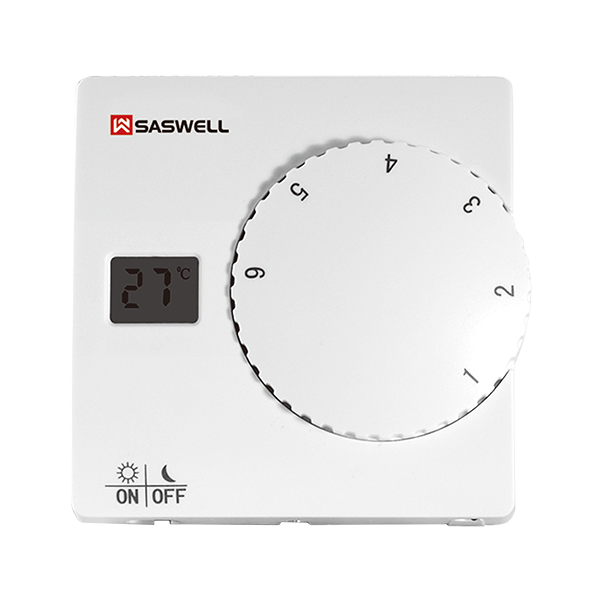

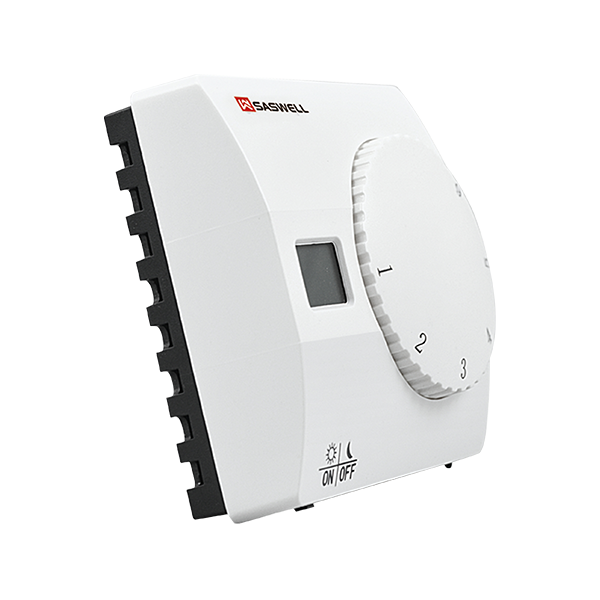

The SAS816FHL-0 is a digital non‑programmable thermostat for hot water radiant and electric cable heating. Featuring a large LCD display and simple rotary dial, it shows temperature, mode, and error codes. No complex programming – ideal for rental apartments, social housing, and commercial projects. Supports 16A load (3500W), 100‑240VAC, three control modes (room, floor, room with floor limit), ±1℃ accuracy, built‑in or remote floor sensor, and removable fuse for system protection.

Key Functions

Rotary Dial

Intuitive temperature setting, no learning curve
LCD Display

Shows current temp, setpoint, mode, error codes
Non-Programmable

Simple on/off control, tenant-proof operation

16A Load

Handles up to 3500W, suitable for floor heating & cables
3 Control Modes

Room only, floor only, or room with floor limit
Flexible Sensor

Built-in (room) or remote floor sensor (field selectable)

Product Selector

Model No.

Heat only

Cool only

Wired

Wireless

Programmable

Relay

Link with boiler

External Sensor

WIFI

Power

Manual

SAS816FHL-0

√

220V

download

Product Parameters

Power source: 100~240VAC 50/60HZ

Load current: 250VAC 16A

Room temperature setting range: 5℃~30℃ (41℉~90℉)

Floor temperature setting range: 5℃~ 40℃(41℉~99℉)

Accuracy: ±1℃ or ±1℉

Dimensions: 86mm×86mm×32mm

Color: White

Product Application Scenarios

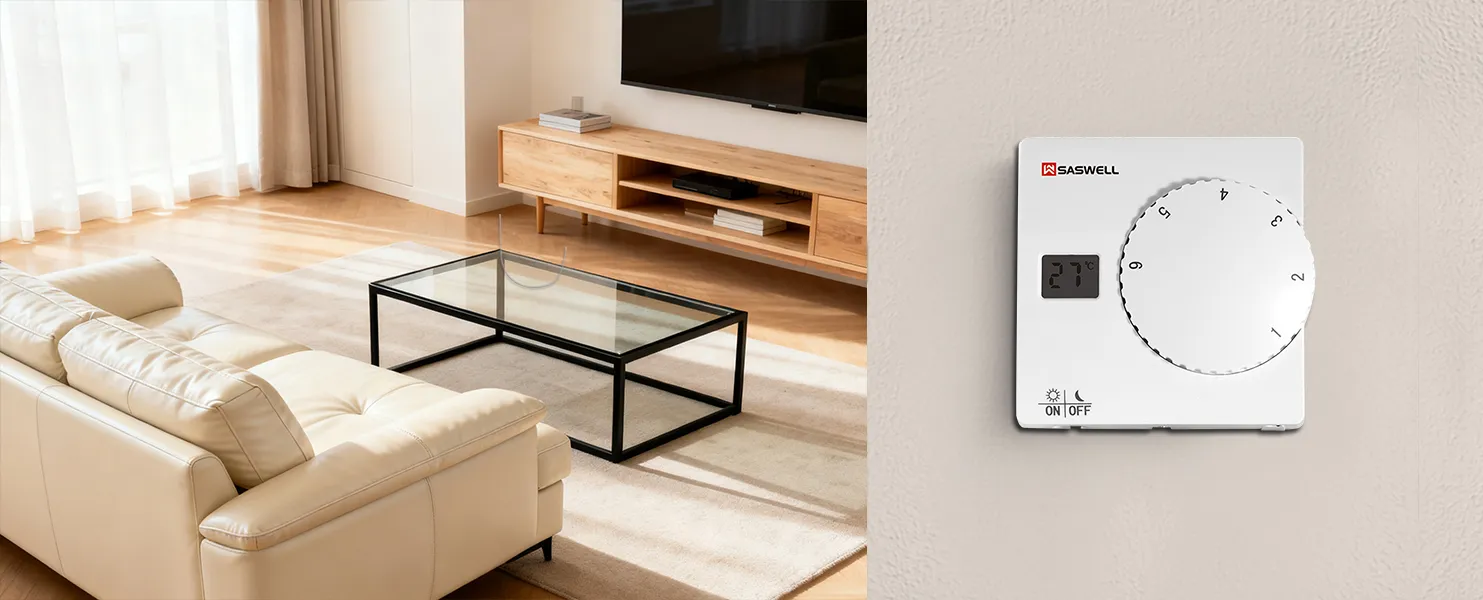

Ideal for rental apartments, social housing, student dormitories, budget hotels, and commercial buildings that require simple, reliable, low‑cost heating control. Compatible with electric underfloor heating, electric heating cables, and hot water radiant systems.

Hotel

Office-Building

Shopping-Mall

Cooperation & Support

Cost-effective digital non-programmable thermostats from a direct manufacturer. Bulk discounts for rental property managers and budget housing projects.

Customization

Logo printing, packaging, preset temperature ranges for OEM projects.
Technical Support

Rotary dial operation guides, sensor selection (built-in/remote), CE/RoHS certificates.
Global After-Sales

18-month warranty, fast replacement, technical support via email/phone.
