SCU211 8-zone heating and cooling wiring center for multi-story residential hydronic applications

SCU211 8-Zone Heating & Cooling Wiring Center

Get a Quote

Key Functions

Heating & Cooling Mode Changeover

12V Low-Voltage Safe Connection

Universal System & Component Compatibility

Synchronized High-Efficiency Operation

Boiler & Heat Pump Protection Interlock

Standard DIN-Rail Mounting

Front view of SCU211 8-zone heating and cooling wiring center

Left side view of SCU211 8-zone heating and cooling wiring center

Right side view of SCU211 8-zone heating and cooling wiring center

Home Wiring Centers SCU211 8-Zone Heating & Cooling Wiring Center

Product Overview

SCU210 5-Zone Wiring Center unifies control of thermostats, thermal actuators, circulating pumps, zone valves, hot water timers, and heat sources across up to 5 independent zones. It supports diverse control topologies as a node within the SCU Series Wiring Center product family for standardized hydronic heating systems.

Recommended reading: View SCU Series Wiring Center

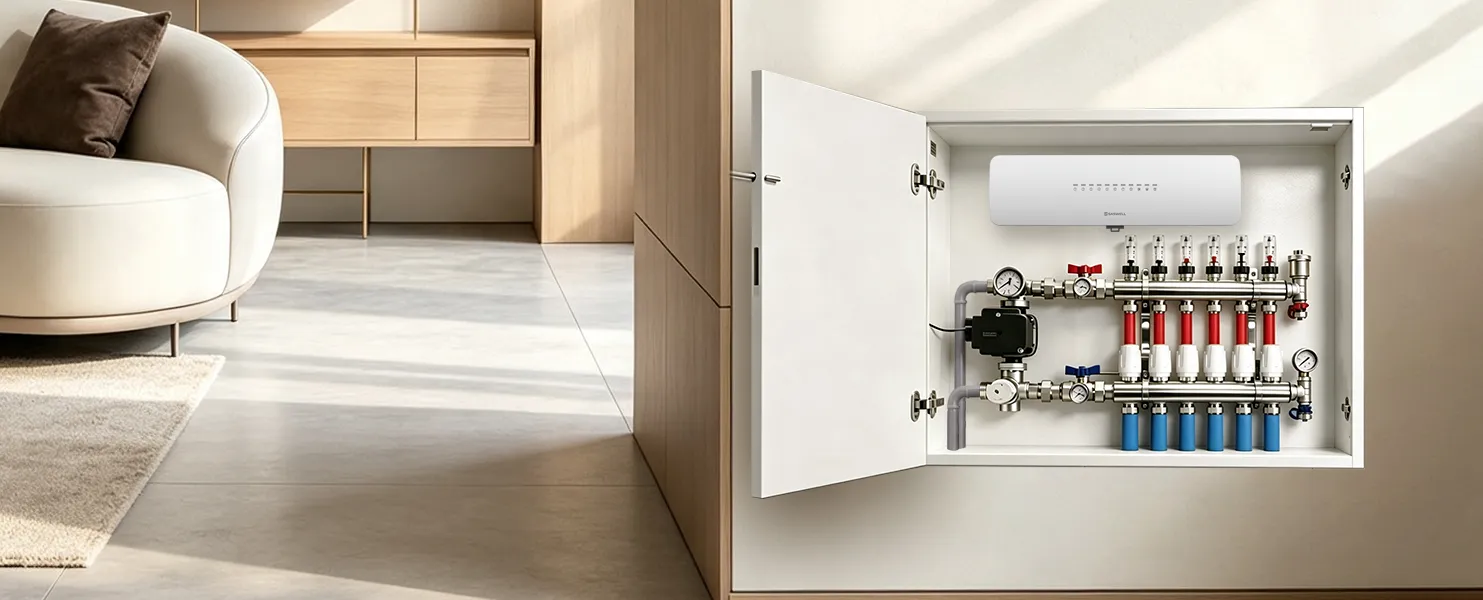

SCU211 8-zone heating and cooling wiring center for residential hydronic centralized control scene

Product Features

Heating & Cooling Mode Changeover

Dynamic changeover signal inputs and mode-switching logic transition between heating and cooling modes. Coordinates room thermostats with 2-wire/4-pipe zone valves and heat/chilled water sources for seasonal operation in radiant floor heating and ceiling cooling installations.
12V Low-Voltage Safe Connection

12V extra-low voltage (SELV) power supply for all thermostat signal lines and sensor terminals. Low-voltage design reduces electrical shock hazards during installation and maintenance.
Universal System & Component Compatibility

Terminal blocks provide connections for circulating pumps, valves, thermal actuators, room thermostats, hot water timers, and volt-free interlocks. Supports various system configurations, boiler switching voltages, and heat pump signal terminals.

Synchronized High-Efficiency Operation

Automated coordination algorithms aggregate zone calls across all 8 zones. Coordinates actuator opening times with pump activation for both heating loops and chilled water valves. Prevents fluid stagnation.
Boiler & Heat Pump Protection Interlock

Isolated volt-free (Dry Contact) output terminals interlock with boilers, heat pumps, chillers, and primary circulation pumps. Sends start/stop and mode signals only when active zones demand heating or cooling. Prevents dry running, short-cycling, and thermal shock.
Standard DIN-Rail Mounting

DIN-rail compliant enclosure fits standard electrical distribution boxes and HVAC control cabinets. Screwless quick-fit structure.

Product Selector

Model No.	RF	5 Zone	8 Zone	Timer	Work with thermostat	Power	Manual
SCU211		√			SAS931	220VAC	download

Product Parameters

SCU211 8-zone heating and cooling wiring center product front view

SCU211 8-Zone Heating & Cooling Wiring Center

● Power Supply: AC100~240V, 50/60Hz, Total Max Current 10A

● Operating Environment: 0~50°C, 0~80% RH (Non-Condensing)

● Storage Environment: -10~60°C, 0~90% RH (Non-Condensing)

● Product Size: 298×88×66mm

● Protection Rating: IP40

Explore Free Sample Opportunities

A limited number of sample opportunities may be available each month, subject to availability.

Email Us to Inquire

Wiring connection diagram for SCU211 8-zone heating and cooling wiring center

Product Dimensions

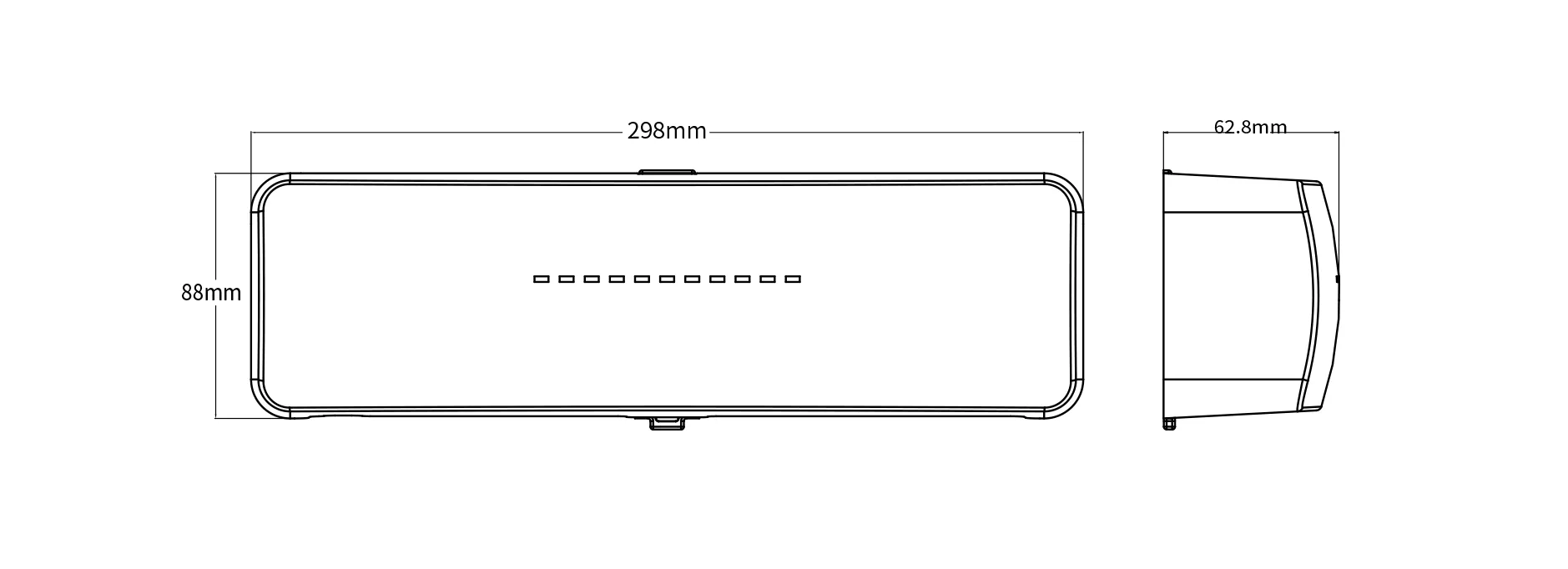

Product dimension drawing for SCU211 8-zone heating and cooling wiring center

Product Installation

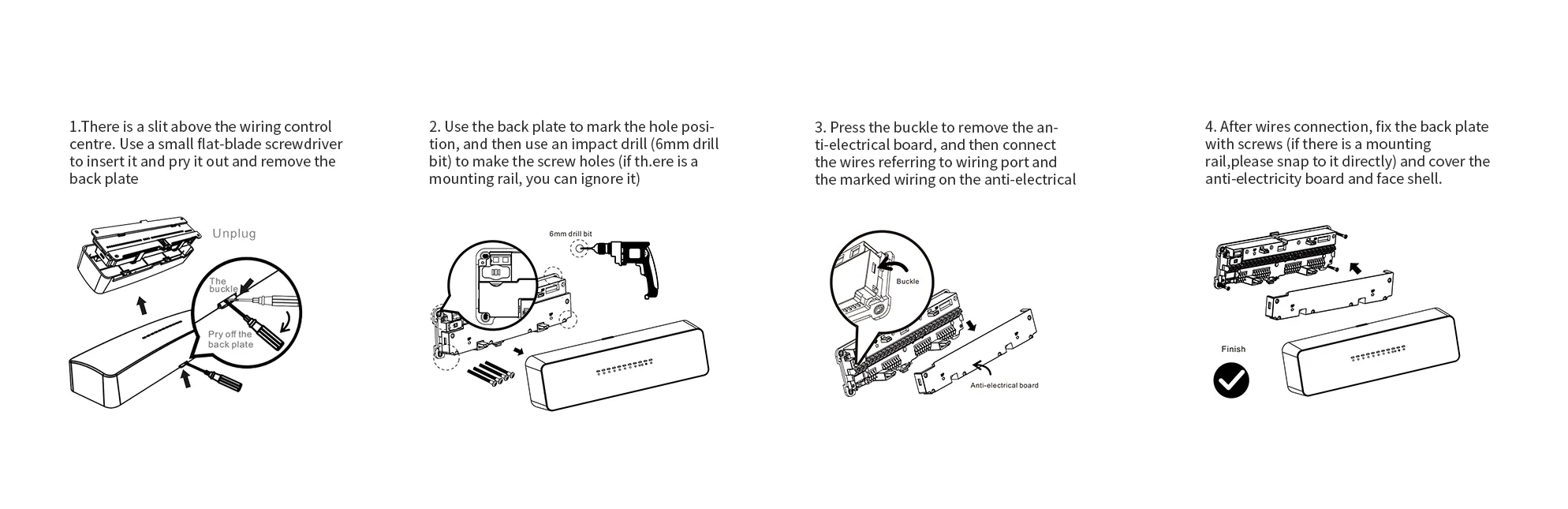

Installation guide for SCU211 8-zone heating and cooling wiring center

Product Application Scenarios

Two-pipe or four-pipe radiant heating and cooling projects requiring up to 8 managed thermal zones: modern villas, energy-efficient residences, and commercial offices with heat pumps or chillers. Works with room thermostats, thermal actuators, and gas boilers as part of a multi-zone climate control system.
